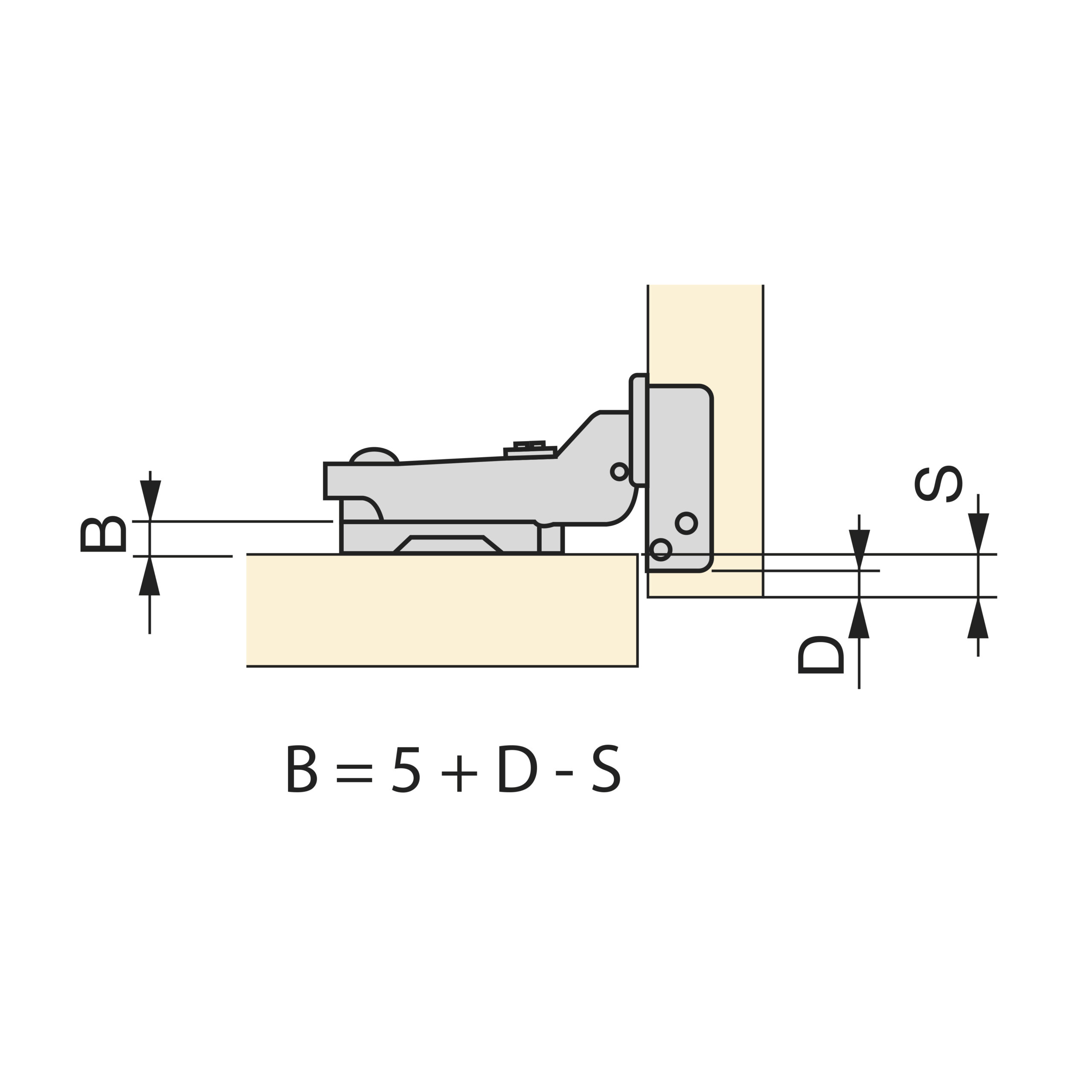

Half Overlay (0°) 2D
X91R Hinge half Overlay, with soft closing, highly adjustable, Steel, Nickel plated
Hinge X91R with Ø35 cup hinge with damped closing, with spring in the closing direction of the door and “clip” assembly. The main feature of this hinge is that it is highly adjustable in terms of depth. This means that we can easily adjust the gap between the side of the cabinet and the door.
The hinge has an opening angle of 105º and for its assembly it is necessary to choose the X91 and X92 supplements, which are fully compatible. Made of steel and nickel-plated finish.
Overview
Product features
- Full overlay Ø35 cup hinge with soft closing for door thicknesses between 16 and 22 mm.
- Door opening angle 105º and spring in door closing direction.
- The hinge allows three-dimensional adjustment for perfect door alignment, with a depth adjustment range of ±3 mm.
- Made of steel and nickel-plated finish.
- Mounted on the supplement by means of a clip. The X91/X92 supplements are compatible with the X91R hinge.
